Service Bus V: Configure EgoSecure Service Bus Adapter

Discontinuation of EDP Extension

Based on customer feedback and lower than expected adoption, Matrix42 has decided to shift investments from the EgoSecure Data Protection (EDP UUX) extension to features that will benefit a broader set of customers and provide greater value. With version 25.0, the UUX for EDP extension has been discontinued. Despite the extension deprecation, the Service Bus Adapter remains part of the Endpoint Data Protection Server installer and is still visible in the Admin Tool, as we are evaluating potential alternative use cases. We recommend all customers to not enable the Service Bus Adapter anymore. If you started before Secure Unified Endpoint Management 25.0, we recommend to disable the Service Bus via the Admin Tool and/or stop the EgoSecure Service Bus Adapter service and set its startup type to "Manual" after the update.

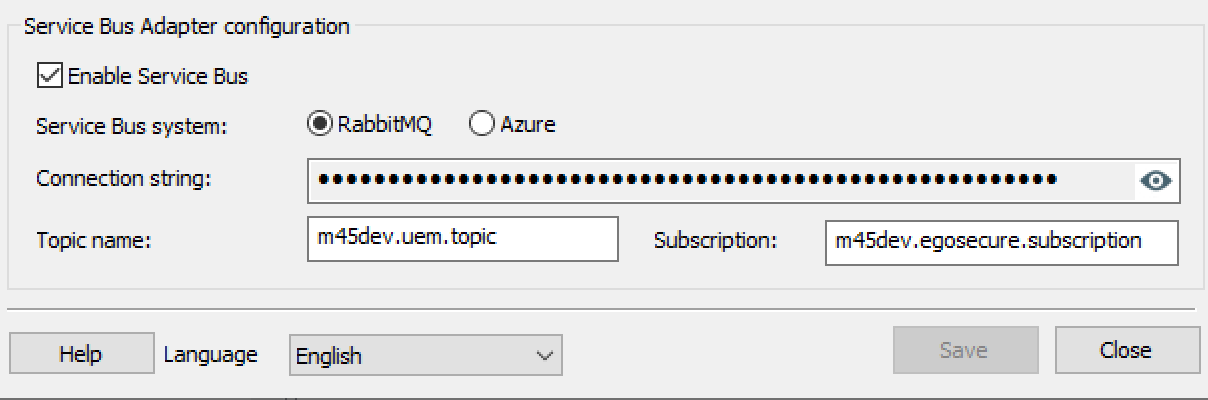

Enable Service Bus in AdminTool (24.0 or older)

  • Connect to your EgoSecure Data Protection Server
  • Launch the AdminTool.exe application.

It is located on the computer with the installed EgoSecure Server under Start > EgoSecure

  • Local the Service Bus Configuration section
  • Enable the Service Bus check box.
  • Select your Enterprise Service Bus system
  • Enter your Connection String
    • e.g. for Azure, the connection string has the following format:
    • Endpoint=sb://imagoverum.servicebus.windows.net/;SharedAccessKeyName=matrix42.suem.policy;
      SharedAccessKey=9ZkqFhzfOA7T8x6tOb/8p04qMwstrJBs02o8uhminuU=;EntityPath=matrix42.suem.topic
    • e.g. for RabbitMQ, the connection has the following format:
    • amqp://rabbitmq:password@rabbitmq.imagoverum.com/matrix42
  • Enter your Topic/Exchange Name, e.g matrix42.suem.topic
  • Enter the Subscription/Queue Name , e.g. matrix42.egeosecure.subscription
  • Press Save.


If your EgoSecure Data Protection Server Service is configured to login as a User (Service) Account, ensure to grant the user Full Control to the the following Registry Key: Computer\HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Matrix42.EPS_UUX.ServiceBusAdapter
